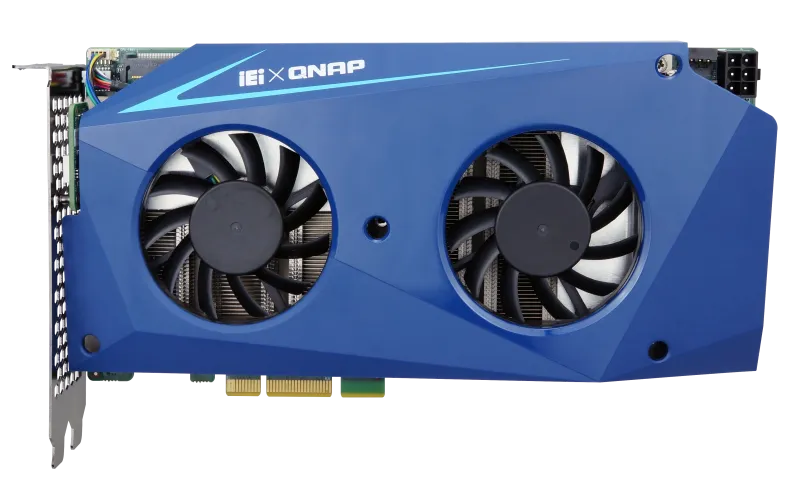

Mustang-200-C-8G-R10

Mustang-200-C-8G-R10

At a Glance

Mustang-200-C-8G-R10: Intel Celeron 3865U processor 1.8GHz x2 · 4GB (2 x 2GB) DDR4 (per CPU) Max: 32 GB (4 x 8 GB)

Why We Recommend This Product

  • CPU: Intel Celeron 3865U processor 1.8GHz x2
  • Memory: 4GB (2 x 2GB) DDR4 (per CPU) Max: 32 GB (4 x 8 GB)
  • 10 Gigabit Ethernet Port: 10GbE network chip (per CPU)

Hardware Specifications — Mustang-200-C-8G-R10

Mustang-200-C-8G-R10: Intel Celeron 3865U processor 1.8GHz x2 · 4GB (2 x 2GB) DDR4 (per CPU) Max: 32 GB (4 x 8 GB)

Computing Accelerator Cards CPU
CPU Intel Celeron 3865U processor 1.8GHz x2
Graphic Intel® HD Graphics 610
Memory Slot 2 x SODIMM (per CPU), with dual-channel support
M.2 SSD Slot 1 PCIe Gen x4 port (per CPU)
Flash Memory 8GB eMMC
10 Gigabit Ethernet Port 10GbE network chip (per CPU)
Memory 4GB (2 x 2GB) DDR4 (per CPU) Max: 32 GB (4 x 8 GB)
Interface PCIe 2.0 x4
Power Consumption (W) 12V@3.34A
Operating Temperature & Relative Humidity 0 ~ 40˚C ( 32˚F ~ 104˚F ),10~90% non-condensing
Cooling 6cm smart fan (per CPU)
Dimensions 40, 210, 111
Power Connector 12V PCIe 6-pin power input

Supported Features

  • Architecture Diagram

Specifications data updated 2026-05-11T10:30:26Z (UTC).

Mustang-200-C-8G-R10

  • Use a single interface to allocate storage space and networking resources. Easily manage and view sub systems when multiple Mustang-200 are installed in the NAS.
  • Mount host storage space easily through iSCSI or VJBOD to ensure you don’t have to worry about running out of space when operating multiple applications.
  • Equipped with dual CPUs, the Mustang-200's computing power equals two NAS. Developers can create various applications on the card without interfering with other applications.
$799.00
Availability: Out of stock
SKU
Mustang-200-C-8G-R10

Software Add-on
